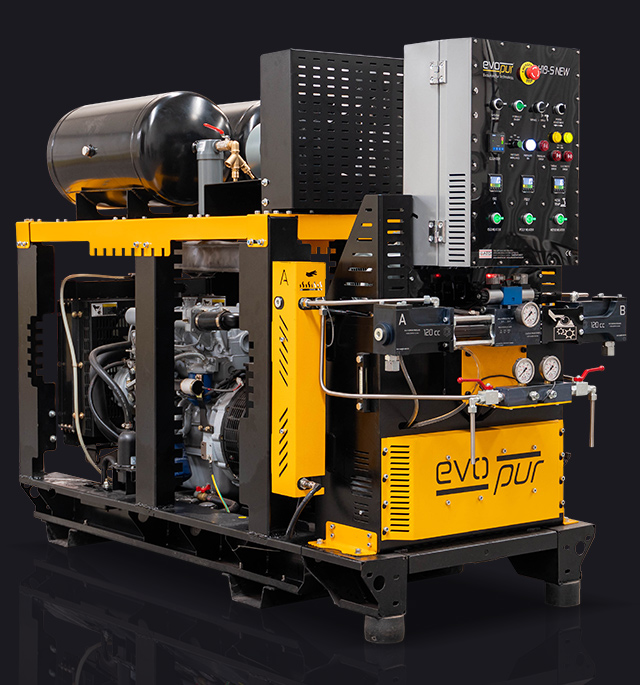

G Series Polyurethane & Polyurea Spray Foam Machine

Warranty 2 year warranty, 10 years of spare part possession
Economic For the ones who is searching a solid, economic solution
Easy Maintenance Service maintenance is easy

We are manufactering best quality proportioners for more than a decade. ATG has several distributors around the world for spray polyurethane foam machines, spray polyurea machines and injection machines. Contact us to learn if you have a nearby distributor or to be a distributor for your region.

G Series Polyurethane & Polyurea Spray Foam Machine

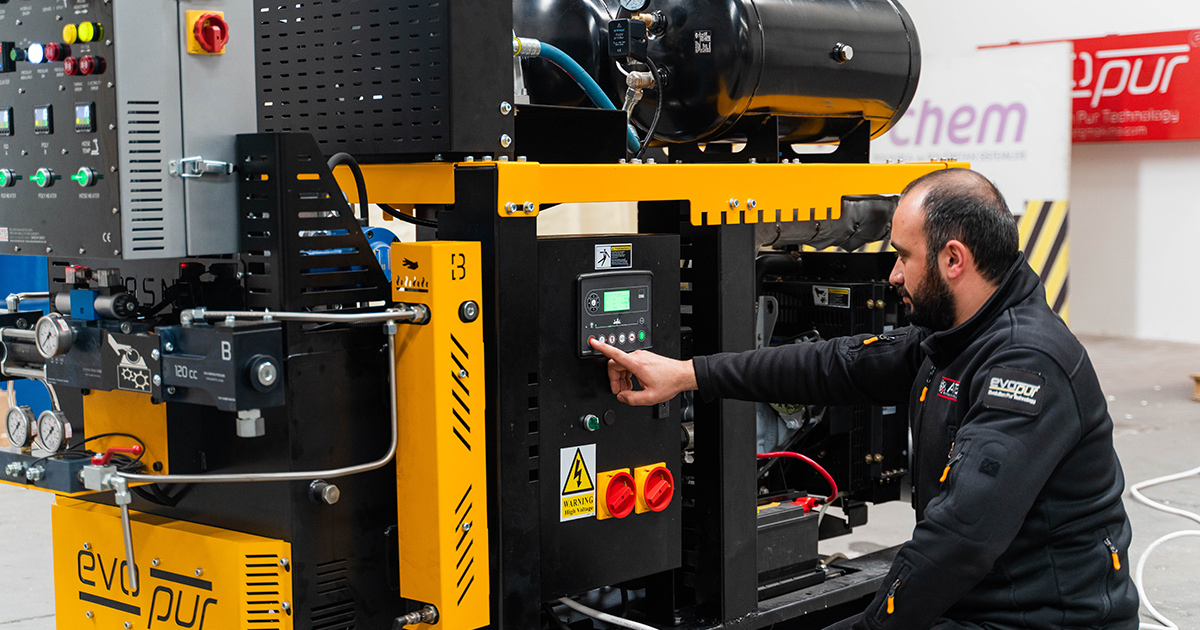

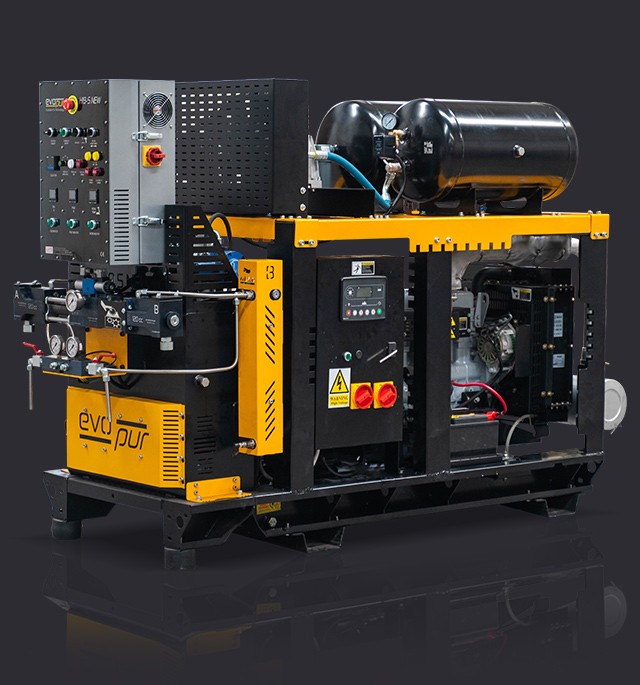

Polyurethane Foam Machine

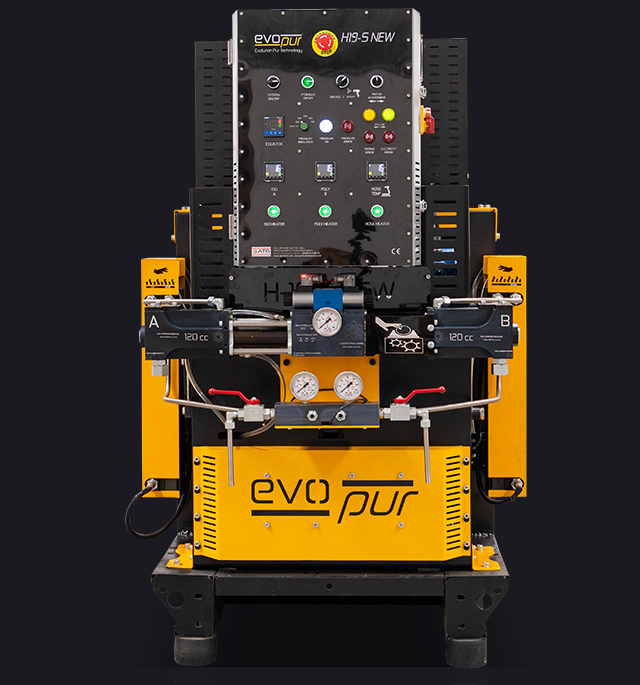

Polyurethane Spray Insulation Machine
Spray foam insulation machine

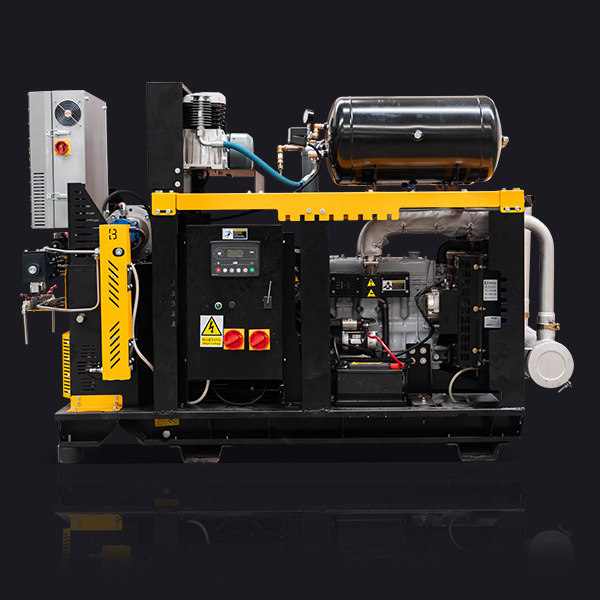

G Series Spray foam insulation machine

Generator integrated system is lighter, stronger than ever and solid as always. Designed for your comfort by ATG.

Did you watch the PU machine video?

Ask us if you have any questions

G Series Technical Information.


 Europe-Asia-Africa-Australia America
Volt 350-415 220-240
Maks KW 19.5 (19.500 W) 19.5 (19.500 W)
Ampere 38 45
Phase 3 Ø Y 3 Ø Δ
Hz 50 60
Generator(KW) 35 35
Maximum Fluid Output (25°C ambient temp) 12 kg/dk 12 kg/dk
Max. Fluid Pressure (25°C ambient temp) 1,5 MPa, 150 bar, 2175 Psi veya 2.4 MPa, 2,45 MPa, 245 bar, 3553 Psi 1,5 MPa, 150 bar, 2175 Psi veya 2.4 MPa, 2,45 MPa, 245 bar, 3553 Psi
Adjustable Fluid Pressure 30 bar - 200 bar 30 bar - 200 bar
Oil Pressure 72 bar 72 bar
Preheater (KW) 5000 W herbiri 5000 W herbiri
Hose Heating (KW) 4 kw 4 kw
Fluid Output (ISO) 16 - 1.5 metric 1/2 Unf
Fluid Output (POLY) 18 - 1.5 metric 9/16 Unf
Fluid Input (ISO) (G) 3/4 (2.0 MPa, 20 bar) max. (Npt) 3/4 (2.0 MPa, 20 bar) max.
Fluid Input (POLY) (G) 3/4 (2.0 MPa, 20 bar) max. (Npt) 3/4 (2.0 MPa, 20 bar) max.
Max. Fluid Temperature 90°C / 194°F 90°C / 194°F
Max. Hose Length (Mt.) 60 Mt. 60 Mt.
Hydraulic Oil Capacity(Lt.) 34 34
Net Weight 1.050 kg (1050.000 gr.) 1.050 kg (1050.000 gr.)
G Series Generator engine technical information
(*) Please indicate the voltage information of the machine and different engine options to our customer representative during the order.
Engine AKSA
Engine Model A4CRX25T
Cylinder and Design 4 cylinders - in line
Diameter and Stroke mm 90 X 100
Total Cylinder Displacement L 2,54
Air intake Turbo Charged
Compression Ratio 18:1
Nominal Revolution d/dk 1500
Oil Capacity L 8,5
Standby Power (kW/HP) 35/47.59
Prime Power (kW/HP) 32/43.51
Number of Jacket Water Heater 1
Jacket Water Heater Power (Watts) 500
Fuel Type Used Diesel
Injection and System Type Direk
Fuel Pump Type Direk
Governor System Mechanic
Operating Voltage (Vdc) 12 Vdc
Battery and Capacity (Quantity/Ah) 1x54
Battery and Capacity (Quantity/Ah) Water Cooled
Cooling Fan Air Flow (m³/min) 180
Coolant Capacity (Only with Engine / Radiator) (lt) 6/20
Air filter Dry Type
Prime 100% Load Fuel Consumption (lt/hour) 8
Prime 100% Load Fuel Consumption (lt/hour) 8
G Series Alternator technical information
(*) Please indicate the voltage information of the machine to our customer representative when ordering.
Producer AKSA
Alternator Brand and Model AK 228
Frequency (HZ) Hz 50
Strength (kVA) kVA 35
Design 4 Pole, Brushless
Voltage V 400
Phase 3
Automatic Voltage Regulator FD460
Voltage Regulation (+/-) 1%
Insulation System H
Protection Class IP23
Power Factor 0.8
Alternator Weight (Kg) 167.5
Cooling Air (m³/min) m3 12.96
Voltage Codes
Ø PHASE
Δ DELTA
Y WYE
(*) All measurements were taken while the device was operating at full load.

Machine technical specifications
